Aircraft Piper Pawnee 235/260
- Stainless steel system.
- Tube, filter, and bar options with 1.5mm or 2mm wall thickness.
- New brake system for wind pump.
- New blade model for wind pump with up to 165mm length.
- Wind pump available in two model options.
- Wind pump with 4, 6, or 8 blade options.
- Bar options in 1 1/4" or 1 1/2".

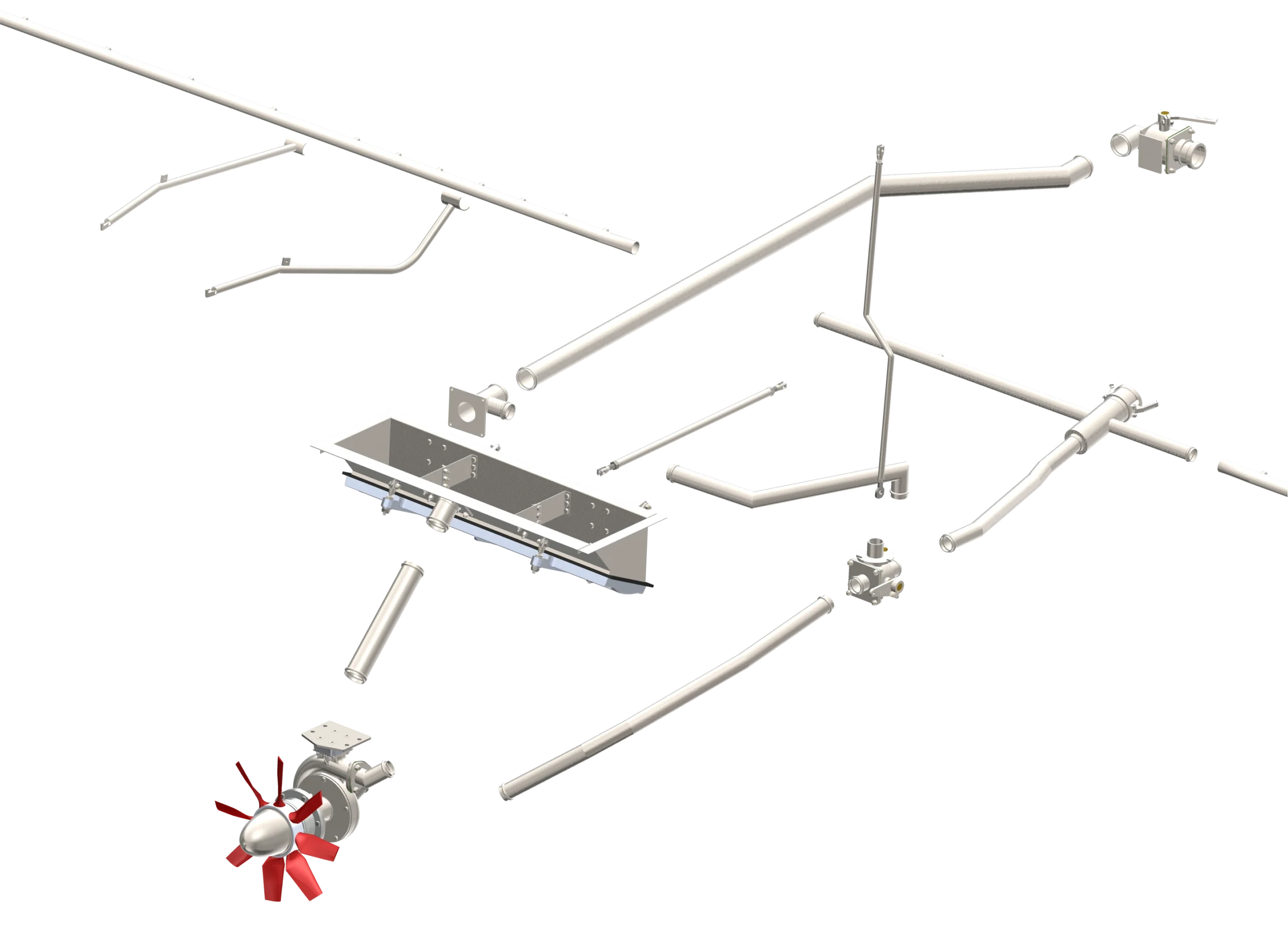

Number: | Product: | PN: |
|---|---|---|
1 | Gatebox | (PN01995) |
2 | Wind Pump Inlet Pipe | (PN90133H7) |
3 | 4-Blade Wind Pump | (PN01780FT-XX-4P) |
3 | 6-Blade Wind Pump | (PN01780FT-XX-6P) |
3 | 8-Blade Wind Pump | (PN01780FT-XX-4P) |
4 | Connection Pipe – By Pass | (PN90133H7) |
5 | By Pass Valve | (PN42616H7) |
6 | By Pass Control Rod
| (PN90136) |
7 | By Pass Control Rod | (PN90135) |
8 | Filtro Y | (PN01148H7) |
9 | 1 1/2″ Return Pipe | (PN90134H7) |
10 | Fuel Flange | (PN90137H7)
|
11 | 2″ Fuel Pipe | (PN01602H7) |
12 | 2″ E Fuel Valve | (PN01833H7) |
13 | Lower Bar Support | (PN90131) |
14 | Upper Bar Support | (PN90132)
|
15 | Round Bar Pawnee 235/260 | (PN01234H7R) – 1 1/4″ REDONDA BICO (PN01234H7M) – 1 1/4″ REDONDA BICO |
15 | Aerodynamic Bar Pawnee 235/260 | (PN06555H7R) – 1 1/4″ AEROFÓLICA BICO (PN01221H7R) – 1 1/2″ AEROFÓLICA ROTATIVO |
