Durability. Agility. Precision.

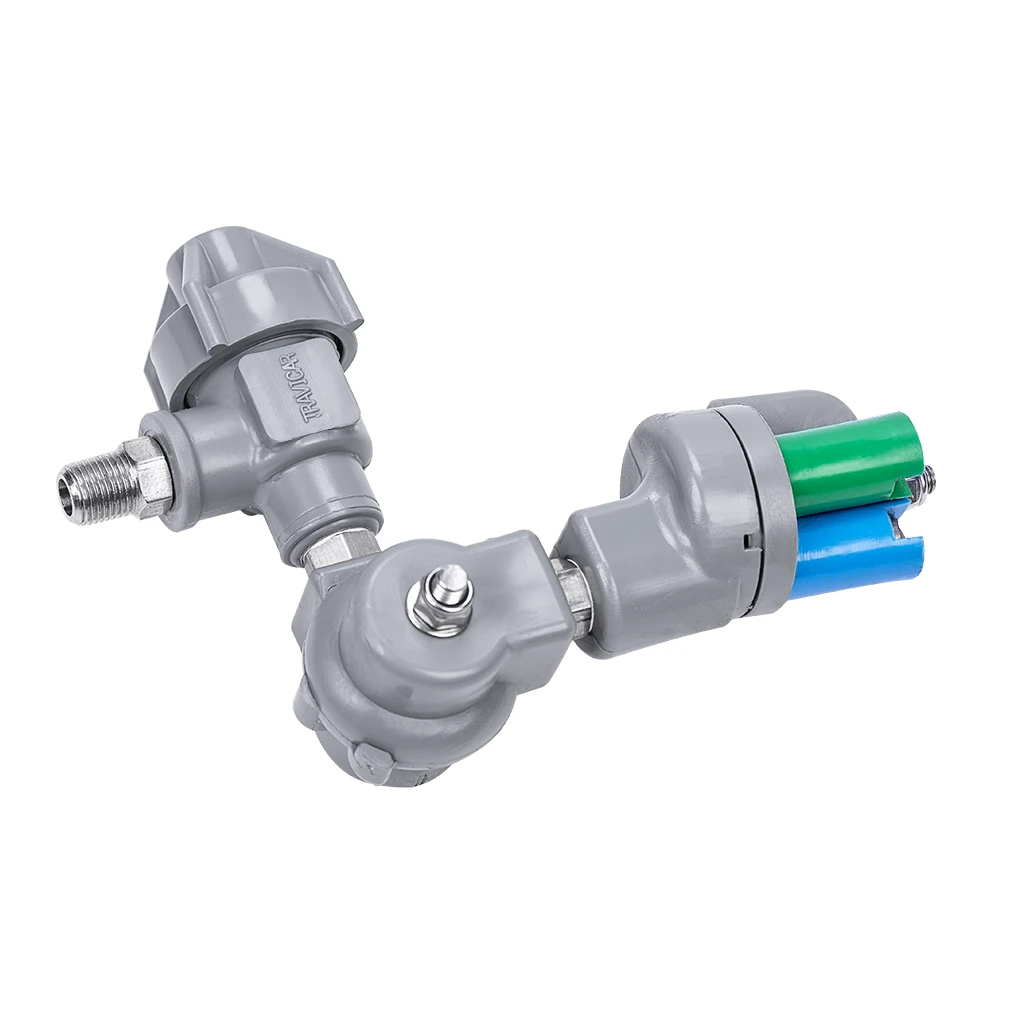

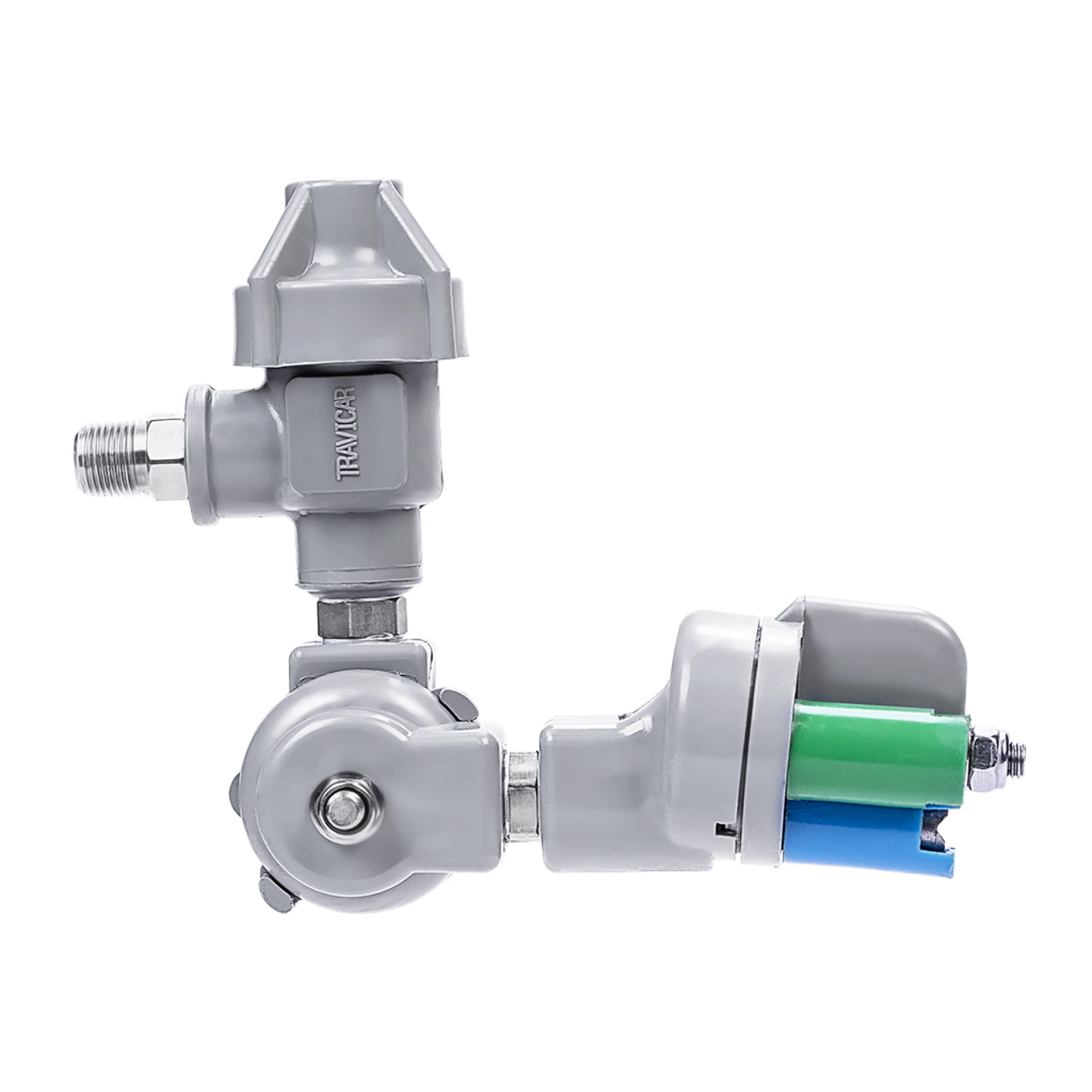

Made from Kynar, the Travicar TT11 spray nozzle offers the most advanced chemical resistance and durability available. Its high performance is ideal for demanding agricultural applications, with quick angle and flow adjustments that reduce downtime and ensure maximum efficiency in any operation.

Click to view the Nylon model:

Specifications:

Material:	Manufactured in Kynar, offering high resistance to chemicals, abrasion, and UV radiation.
Flow Rates:	1.0 L/min – 13.5 L/min
Spray Angles & Droplet Spectrum Adjustment:	Flat jet with click-based deflection: 0° / 15° / 30° / 45° / 60° / 75° / 90° Rotating system with 3 selectable positions.

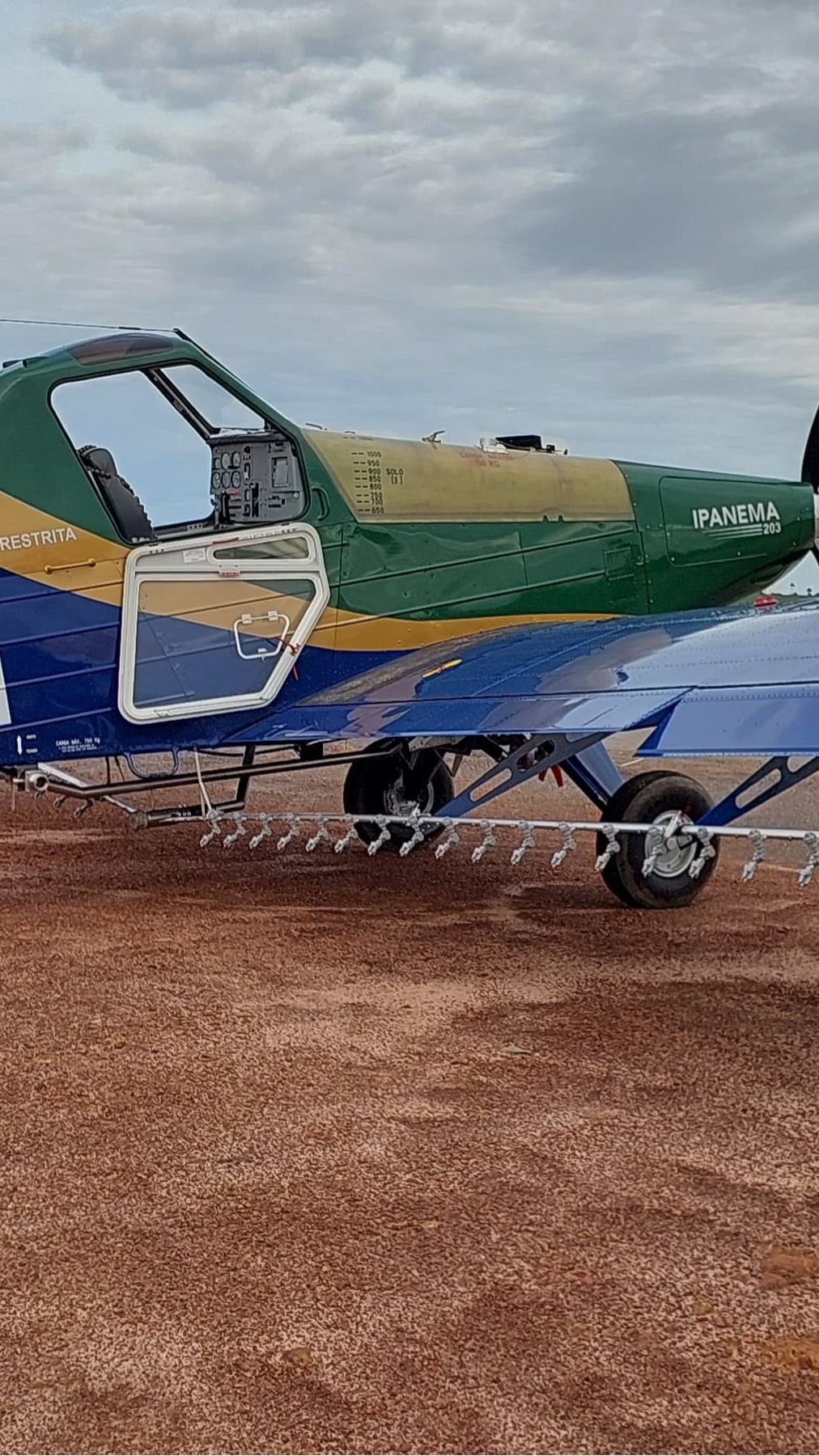

Compatibility:	Ideal for both low- and high-speed aircraft.

Information:

The Travicar TT11 was designed to combine technology and practicality. Built with Kynar, it is lightweight, highly resistant, and reliable—delivering durability even under extreme conditions. Compatible with both low- and high-speed aircraft, it is the ideal choice for those seeking consistent results and maximum safety.

Parts:

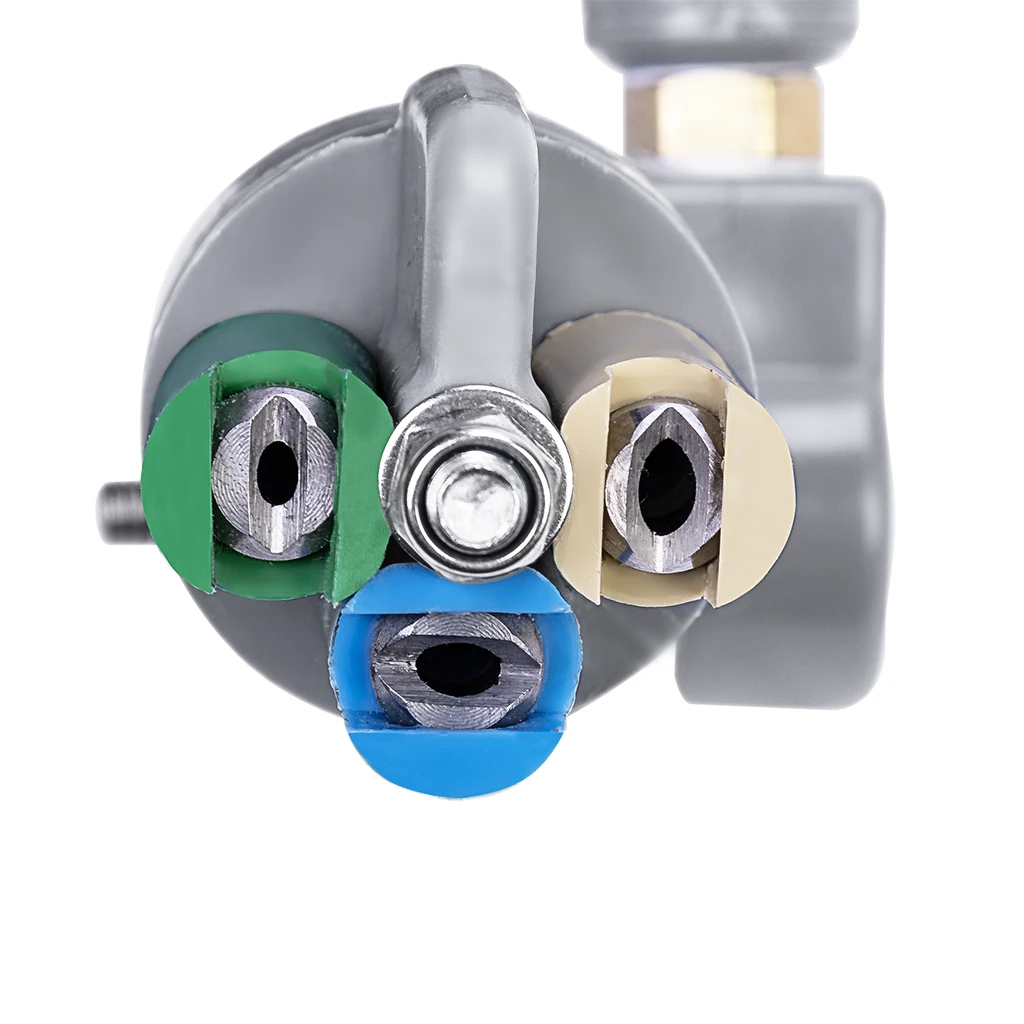

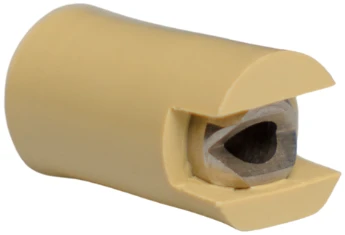

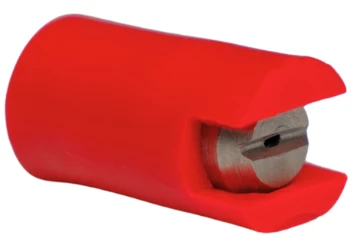

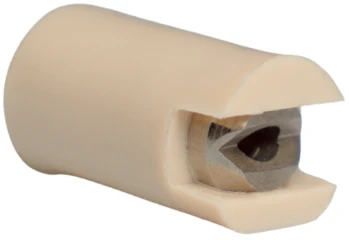

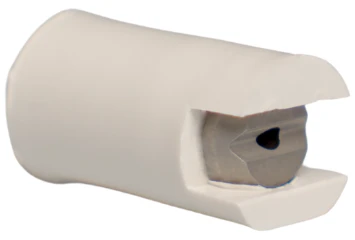

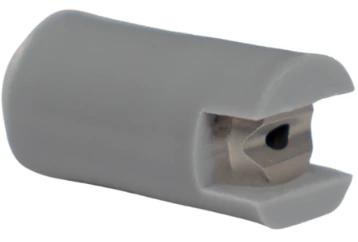

Rotating Nozzle System – Kynar

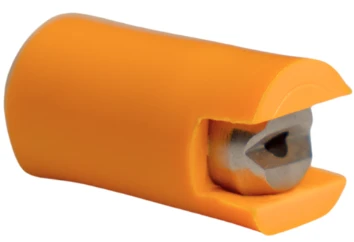

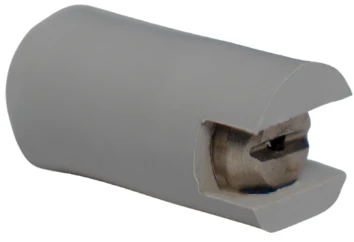

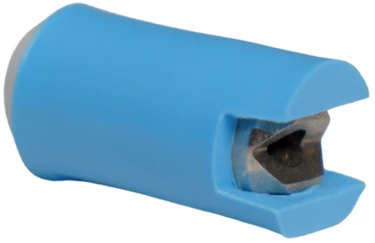

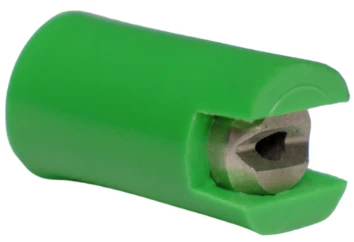

Flat Fan Spray – 40º / 80º / 120º

Solid Stream Spray – 0º

NIPLE 1/8

Nº	20 PSI	30 PSI	40 PSI	50 PSI	60 PSI
4004	1.22	1.38	1.59	1.77	1.93
4006	1.70	2.01	2.27	2.52	2.75
4008	2.30	2.56	2.99	3.28	3.60
4010	3.07	3.45	4.01	4.42	4.84
4012	3.65	4.14	4.84	5.30	5.86
4015	4.08	4.60	5.35	5.99	6.50
4020	4.99	5.66	6.40	7.22	7.98
4025	6.10	6.93	8.03	8.92	9.72
4030	6.80	7.85	8.86	9.95	10.84
