Tip – Kynar TT 03 Nozzle

Tip - Kynar TT 03 Nozzle

Tip – Kynar TT 03 Nozzle

 The ideal solution for efficient spraying! With two models.
Available, our Spray Nozzle Tip allows for low and high flow
applications, regulating the droplet spectrum according to pressure
and angle relative to the wind.

Made from highly durable polymer, it comes with options
Anti-drip valve in polymer, brass or stainless steel.
guaranteeing precision and economy

Select the Model:

Travicar Stainless Steel Atomizer 81mm

 Adjusting the Droplet Spectrum:  0º 5º 30º 0.26 gpm – 3.96 gpm

Flow Rate:

1.0 I/min – 15.0 I/min
This adaptable spraying system includes two different sprayer models, providing a broad spectrum of working possibilities at both low and high flow rates. Key Features: Adjustable Droplet Size: Control droplet size by adjusting pressure and the nozzle angle in relation to the wind. Durable Construction: Made from a highly resilient polymer. Anti-Drip Options: Available with anti-drip valves in polymer, brass, or stainless steel.

Flow Regulator

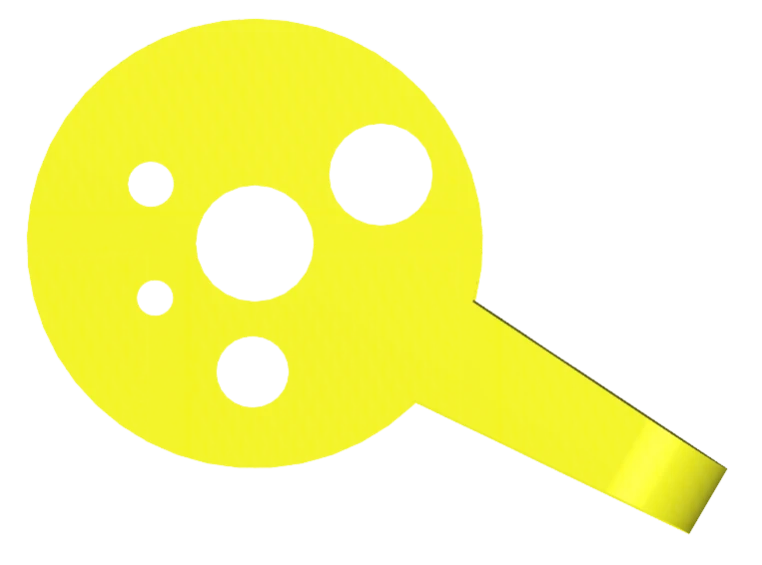

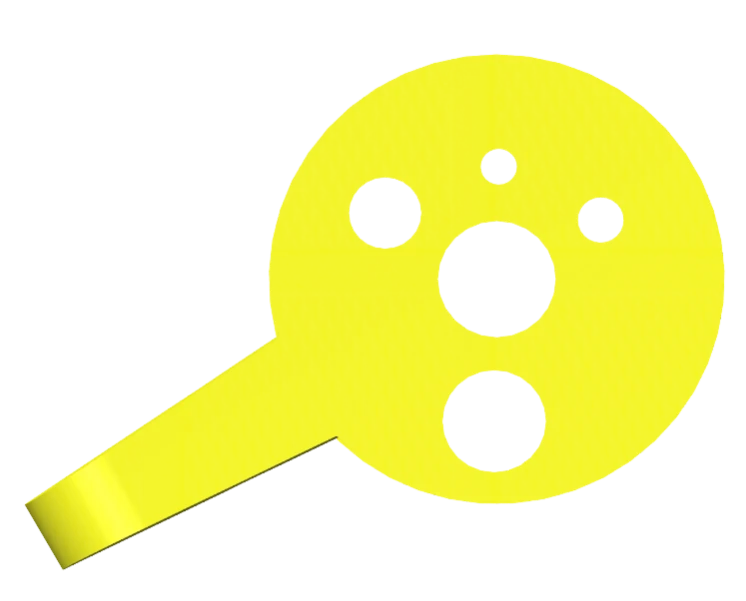

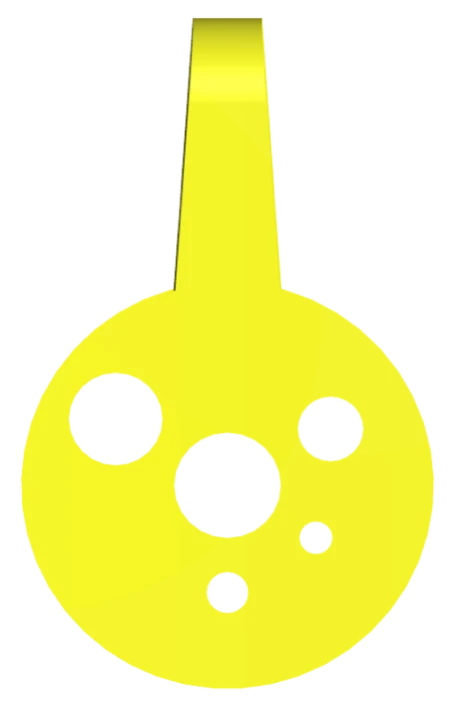

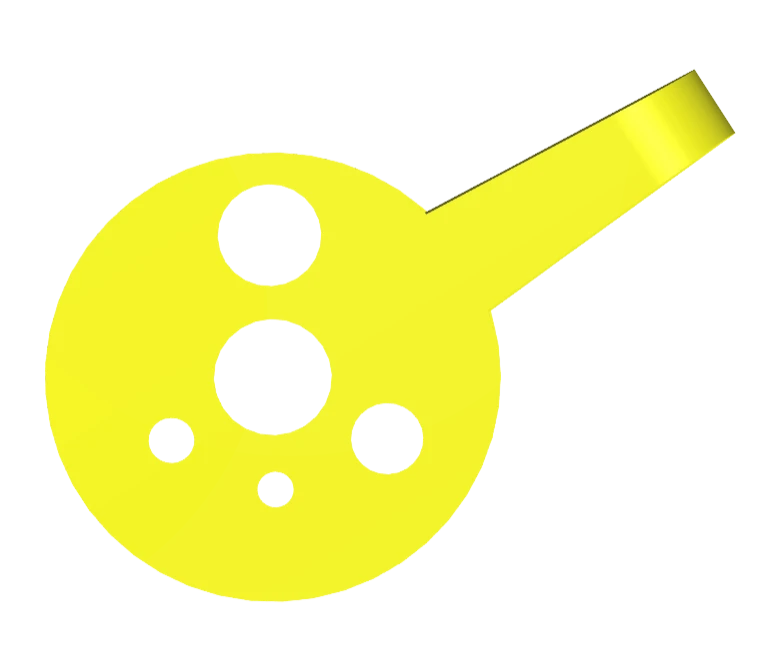

Flow Adjustment Through 4 Orifice Options:

Orifice 1

Orifice 2

Orifice 3

Orifice 4

NIPLE 1/8"

Nº 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI
O11.091.201.301.451.60
O21.902.202.572.873.12
O34.355.015.936.517.15
O45.2010.2212.2713.7515.05
